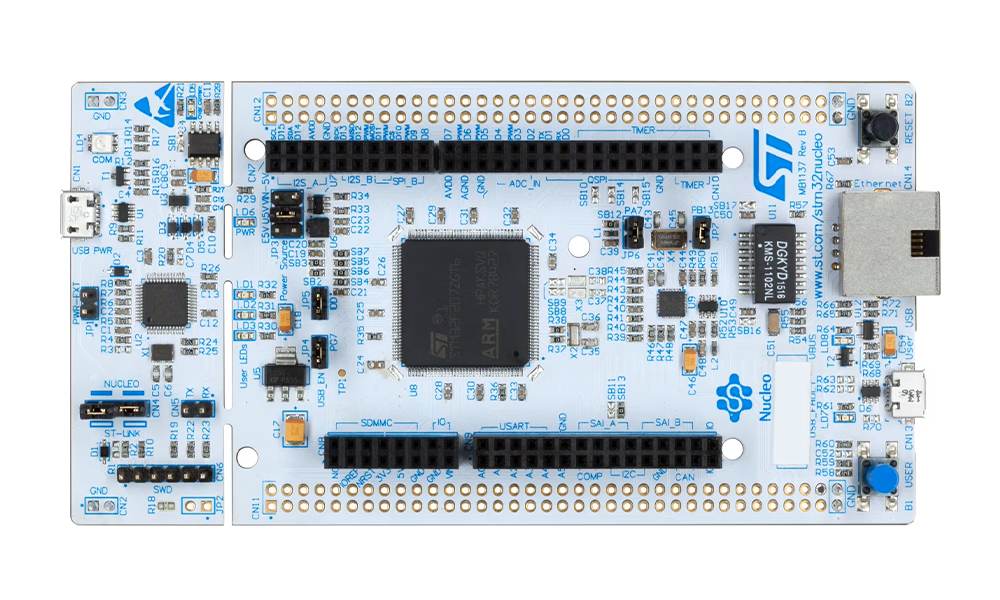

Nucleo 144
stm32_nucleo_144
Absolute Board.
STs definitive answer to how long can we physically make a dev board.
Good to know
- Onboard ST-LINK at the top – drag&drop programming plus a virtual serial port.
- The JP jumpers select the power source (ST-LINK USB / external).
- IOREF is 3.3V; the FT-marked pins are 5V tolerant, the analog ones are not.
- Arduino-compatible Zio + ST morpho headers.

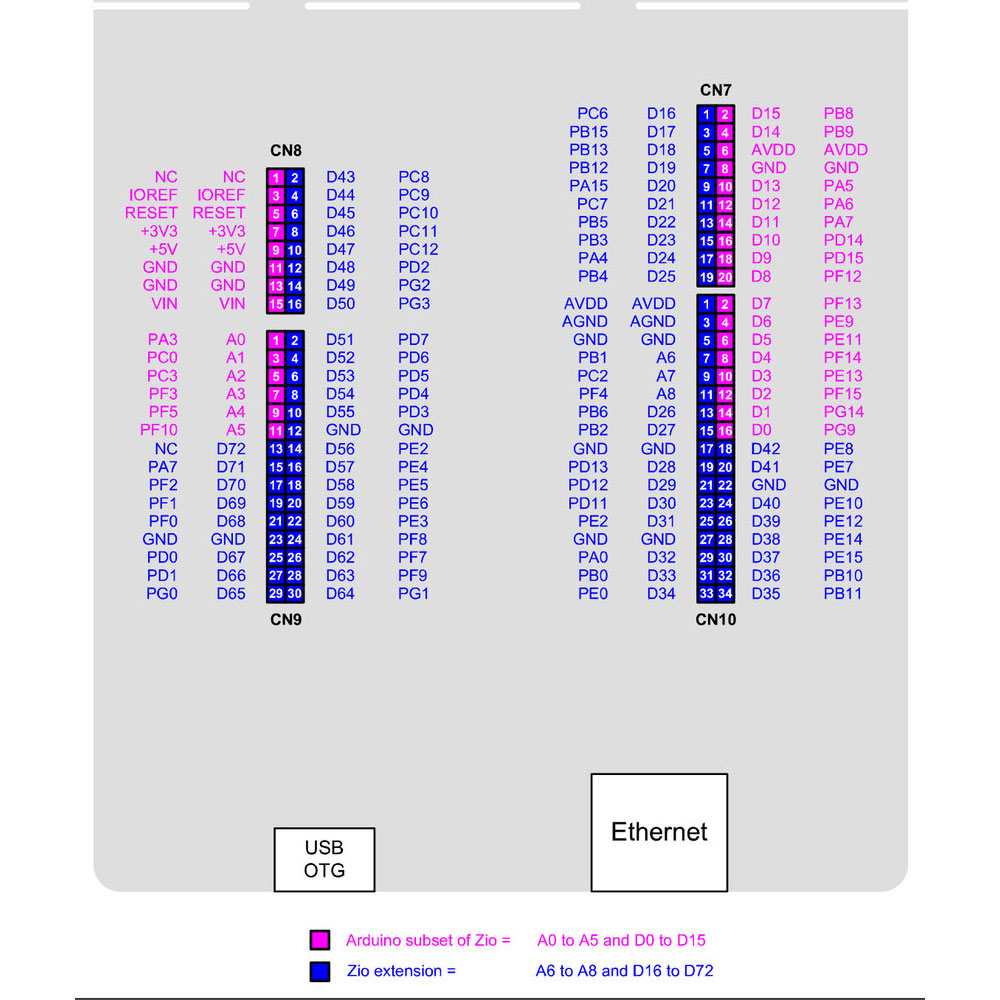

Pinout
Tap to enlarge
