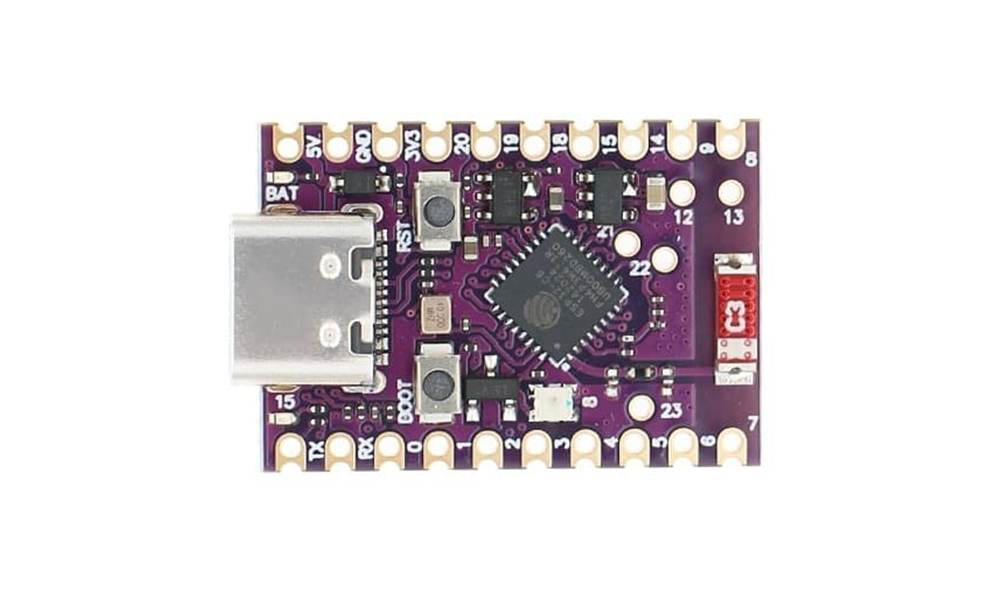

MakerGo C6 Supermini
esp32_makergo_c6_supermini
Six... Seven... Only Six!
Tiny ESP32-C6 where you cry over the limited PWM pins.
Good to know
- The BOOT button is the GPIO9 strap – hold it through a reset for download mode.
- GPIO8/9 are strapping pins, do not pull them at boot.
- GPIO12/13 are the native USB D-/D+ – use them as GPIO and you lose USB.
- It also does Thread/Zigbee (802.15.4), not just Wi-Fi/BLE. 3.3V logic.

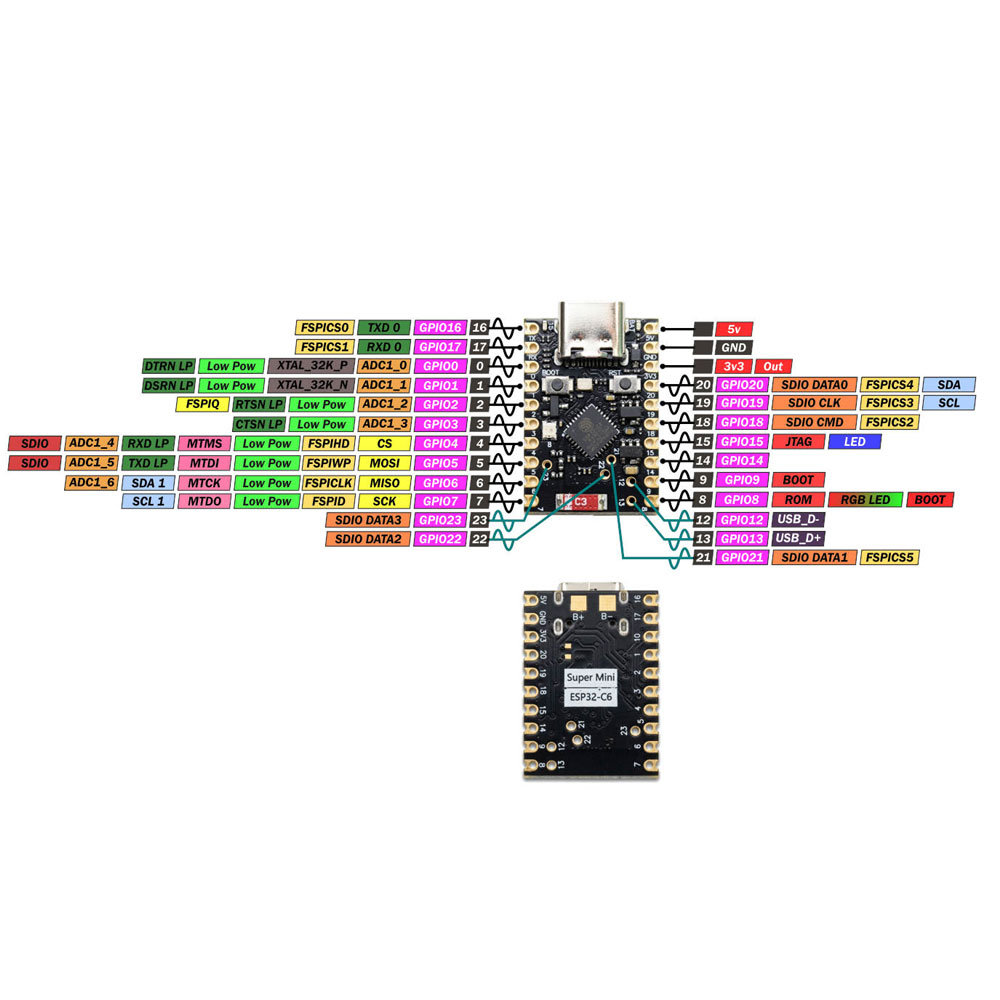

Pinout
Tap to enlarge
