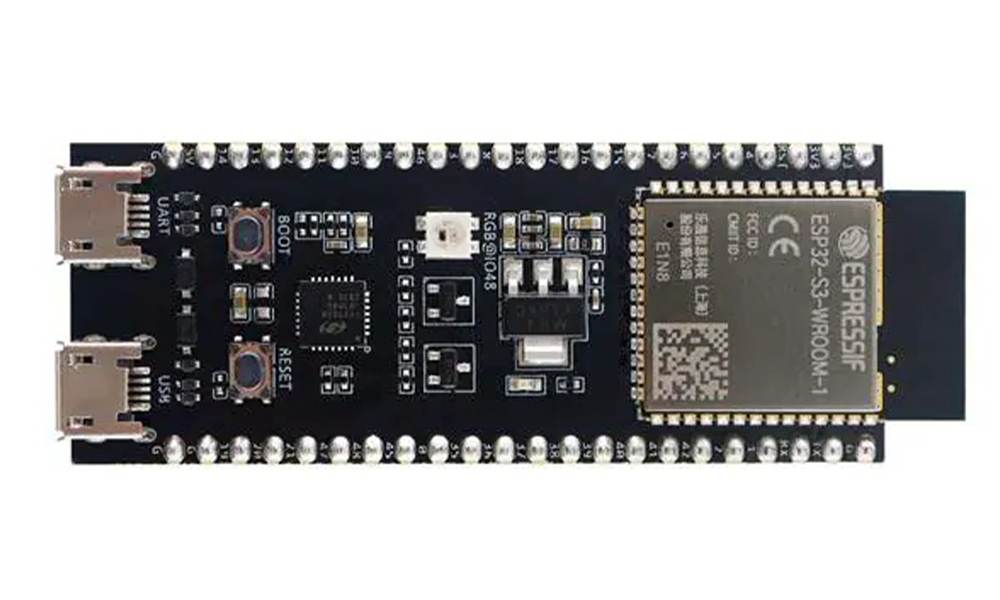

ESP32-S3-DevKitC-1
esp32_s3_devkitc_1
The Vector Beast.
Vector extensions and AI functions for pocket money.
Good to know
- Download mode: hold BOOT (GPIO0) + press RESET.
- Strapping pins: GPIO0, 3, 45, 46 – do not pull or load them at boot.
- On the N8R8 (octal PSRAM) version GPIO35–37 belong to the PSRAM, hands off!
- Two USB ports: one UART bridge, one native USB-OTG. 3.3V logic.

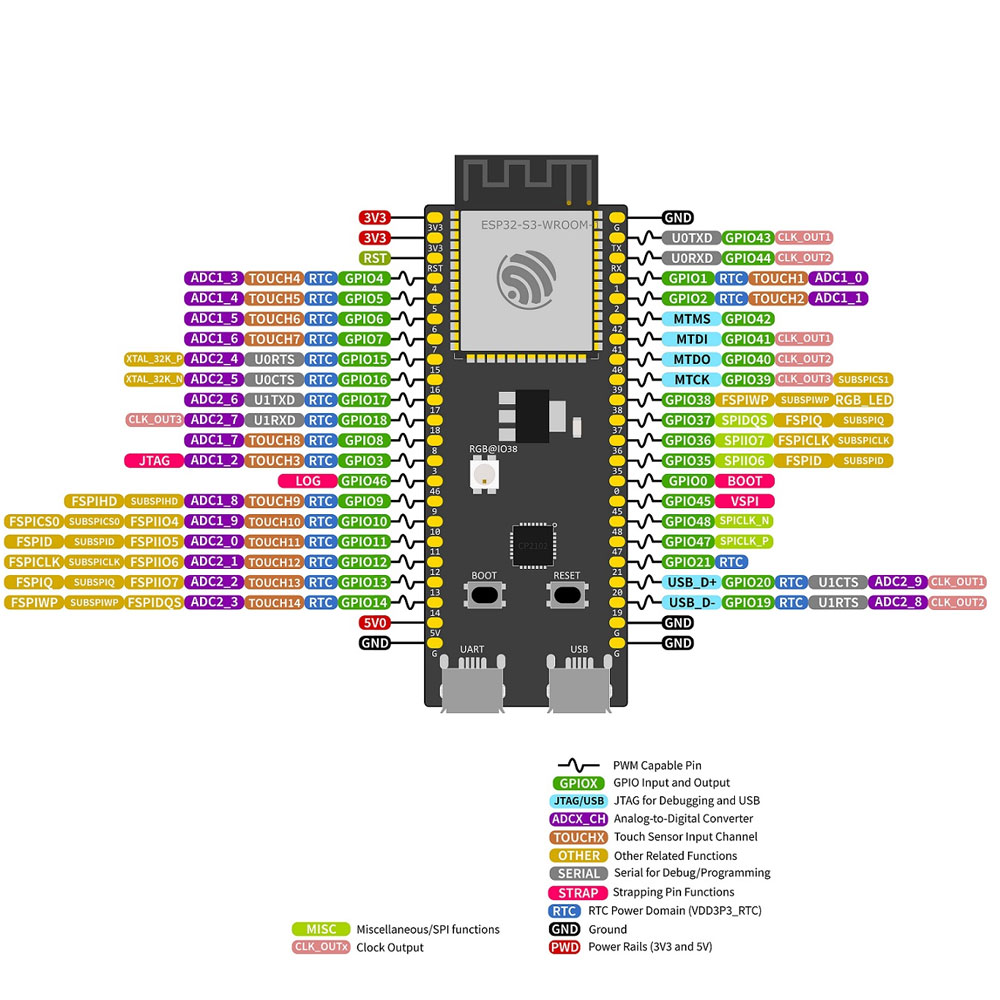

Pinout
Tap to enlarge
