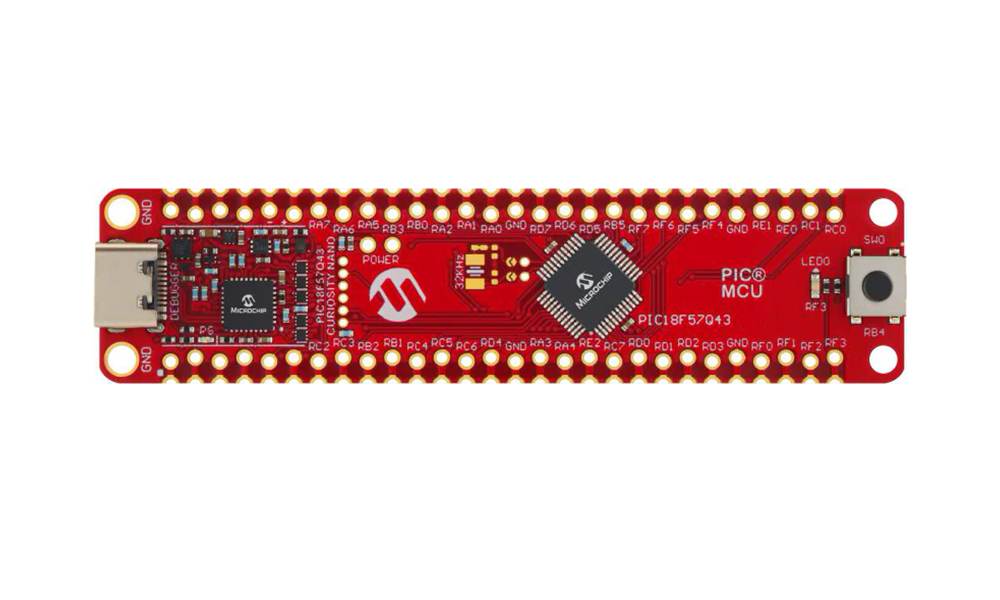

PIC18 Curiosity Nano
pic18_curiosity_nano
8-Bit Nostalgia Trip.
Because assembly and 8-bit registers never truly die.
Good to know
- Drag&drop programming: it mounts as a CURIOSITY drive, or use MPLAB X.
- Target voltage is adjustable 1.8–5.5V from the debugger.
- Headers come unsoldered – solder them for breadboard use.
- Built-in CDC serial port on the debug USB.

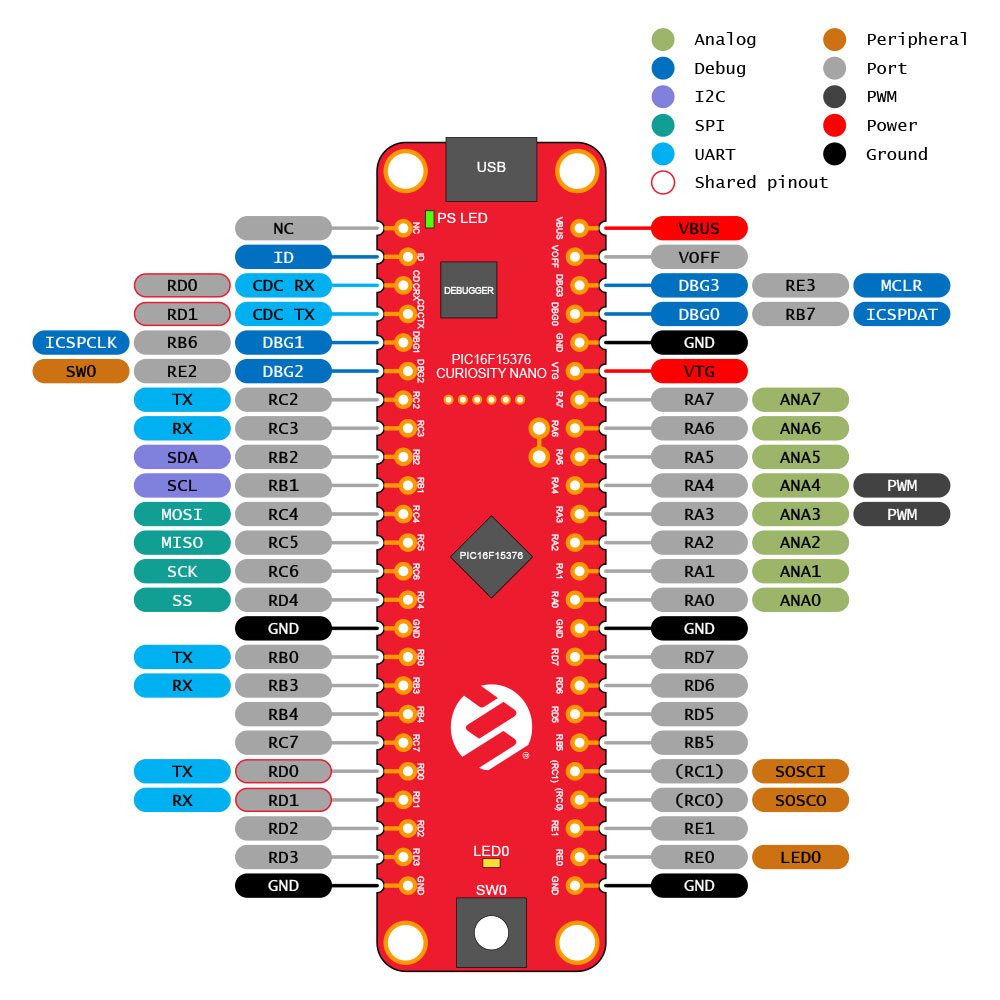

Pinout
Tap to enlarge
