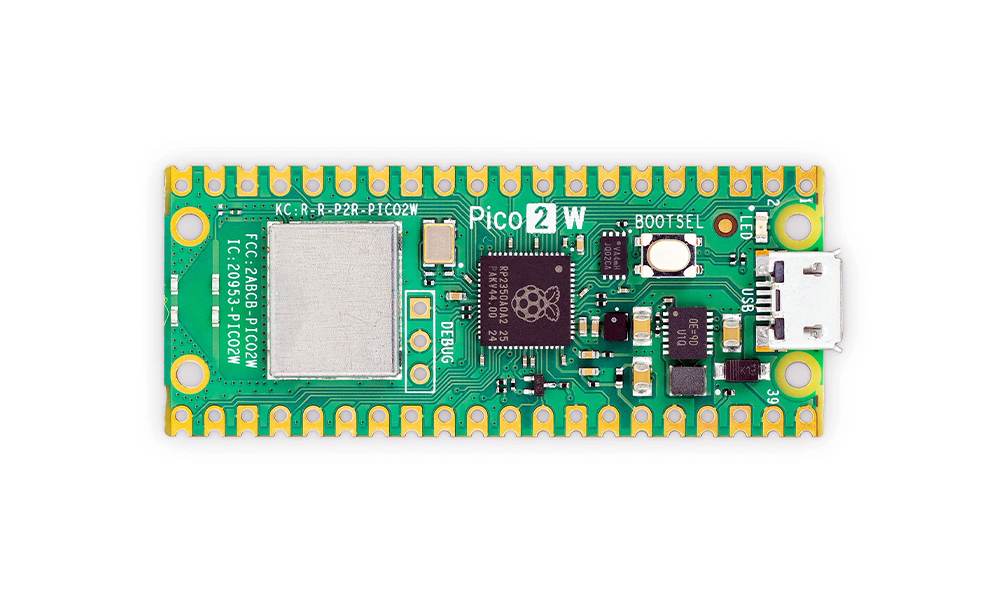

Pi Pico 2 W
rpi_pico_2_w
Four Cores, Pick Two.
Dual ARM Cortex-M33 and dual Hazard3 RISC-V. Pick your duo.
Good to know
- To program: hold BOOTSEL while plugging in, it shows up as a UF2 drive.
- GPIO is 3.3V, NOT 5V tolerant.
- RP2350 E9 erratum: internal pull-downs can latch – use external (~8.2k) pull-downs on inputs.
- On battery, feed power into VSYS, not VBUS.

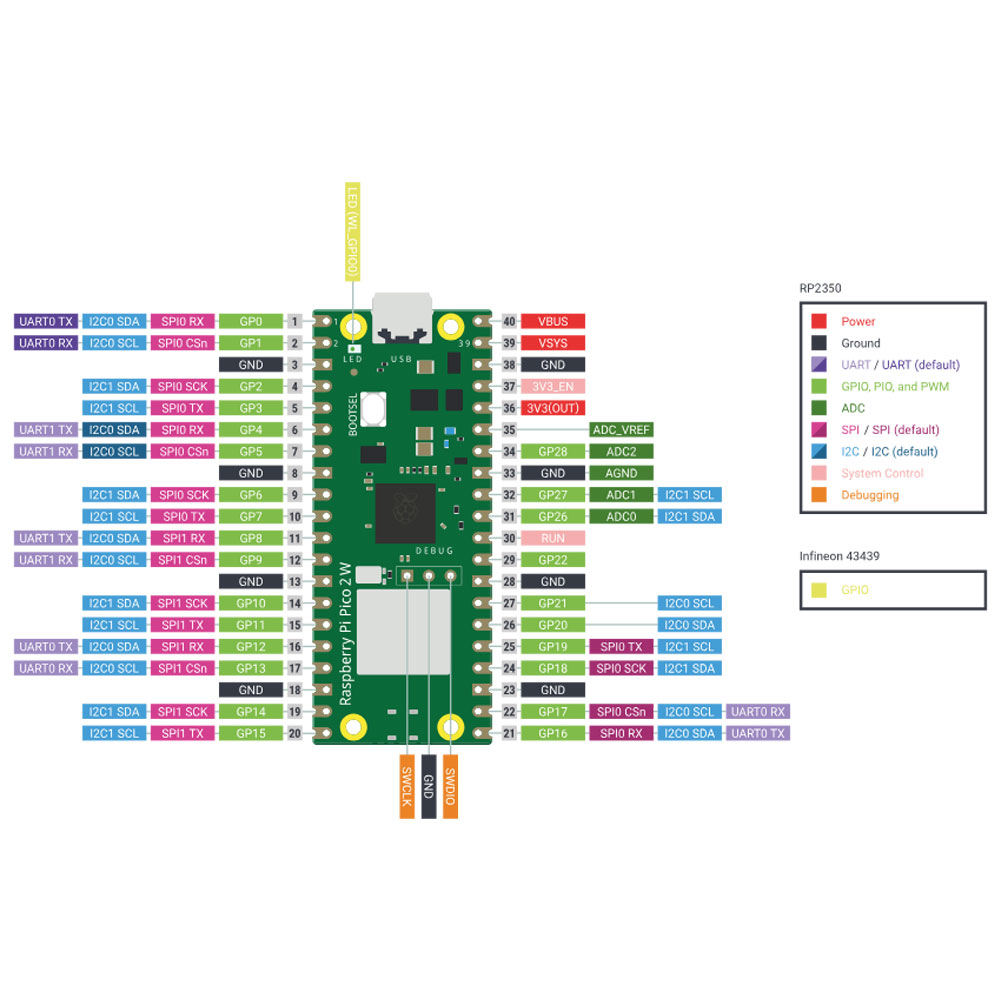

Pinout
Tap to enlarge
