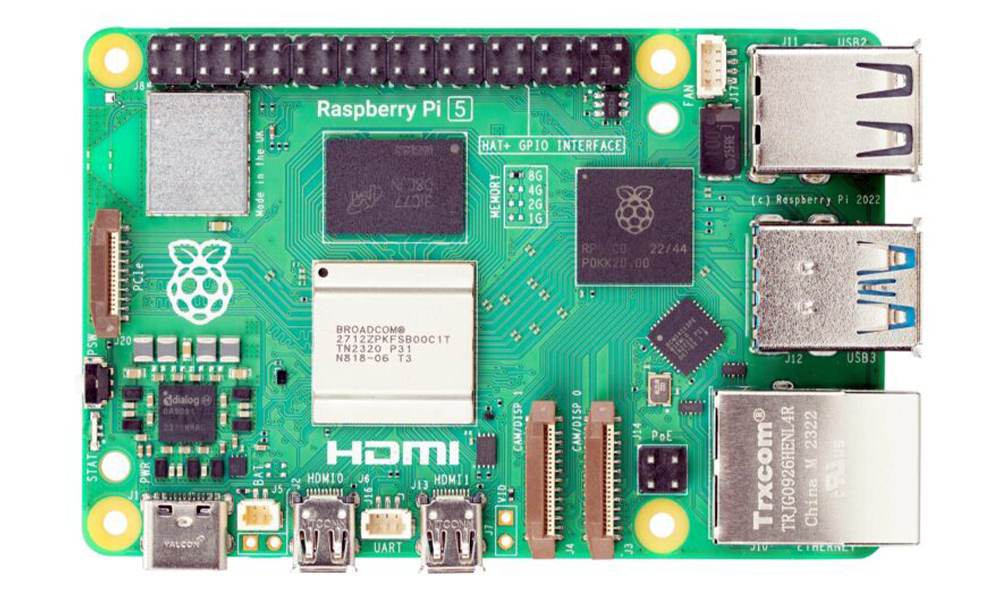

Pi 5
rpi_5
High Speed Heat Monster.
Melt-your-case performance without a heavy heatsink.
Good to know
- Use the official 5V/5A USB-C supply – weaker PSUs current-limit the USB ports.
- Active cooling is practically mandatory under load.
- GPIO is 3.3V and NOT 5V tolerant.
- Bonus: onboard RTC battery connector and a PCIe FFC connector.

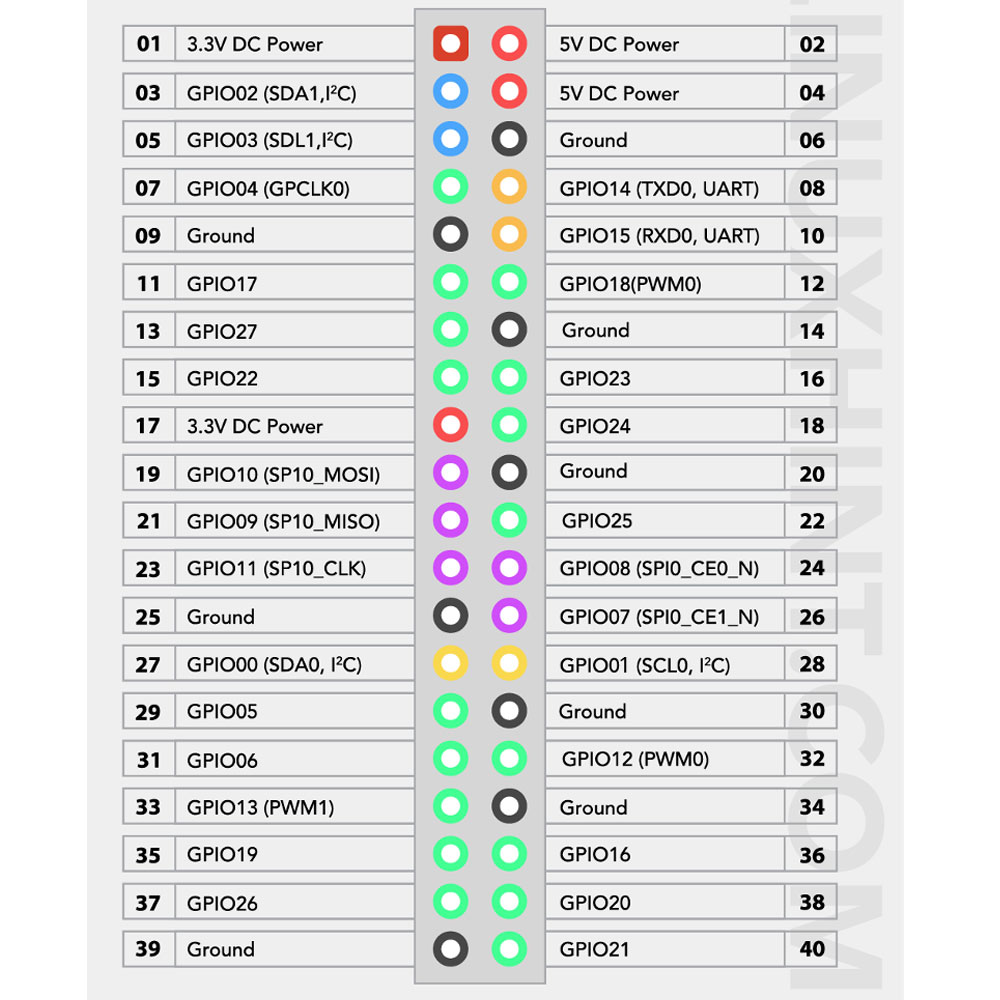

Pinout
Tap to enlarge
